BWSP-250 Desanding Plant

BWSP250 desanding plant is a mud-water separation equipment suitable for trenchless pipe jacking construction. Its maximum processing capacity is 250 cubic meters per hour. BWSP250 desanding plant is a mud-water separation equipment suitable for trenchless pipe jacking construction. It can achieve 250 cubic meters of mud-water separation and processing capacity per hour, and can be adapted to pipe jacking machines with a pipe diameter of 1.8 meters to 2 meters, as well as positive and negative circulation holes, and mud-water separation and mud purification in mud-water balance shield construction can not only reduce construction costs, improve hole-forming efficiency, but also reduce mud discharge.

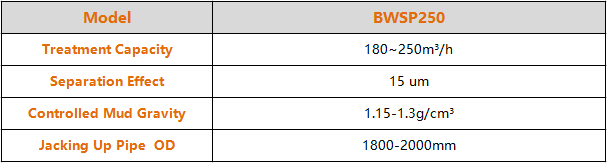

Technical Parameters of BWSP250 Desanding plant

Features of BWSP250 Desanding plant

1. Large structural rigidity, stable operation, multiple functions performed on one power source, and low noise.
2. With double-layer screen and large-area dehydration area, the material is fully dehydrated, and the material will not overflow.
3. Large dehydration ratio, good dehydration effect, large production capacity and energy saving.
4. The continuous operation from feeding to discharging mud cake is highly automated.
5. The power transmission mechanism adopts mechanical or frequency conversion regulation, which has a large speed regulation range and wide adaptability.
6. Screens with different specifications can be configured according to different materials with high filtration accuracy.
