BWSP-350 Desanding Plant

BWSP350 desanding plant is a special mud-water separation equipment designed for large-scale pipe jacking projects. It can achieve a mud-water separation treatment capacity of 350 cubic meters per hour, and can be adapted to pipe jacking machines with a pipe diameter of 2 meters to 2.5 meters. It is a large pipe jacking machine. Required mud equipment for construction. BWSP type desanding plant is mainly suitable for positive and negative circulation holes (slots) in geology, hydropower, urban construction, bridge pile foundations, etc. and mud-water separation and mud purification in mud-water balance shield construction, which can reduce construction costs and improve hole-forming efficiency, but also to reduce mud emissions.

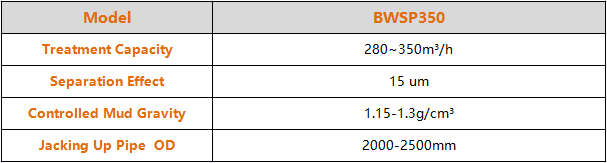

Technical Parameters of BWSP350 Desanding plant

Features of BWSP350 Desanding plant
1. Large structural rigidity, stable operation, multiple functions performed on one power source, and low noise.
2. With double-layer screen and large-area dehydration area, the material is fully dehydrated, and the material will not overflow.
3. Large dehydration ratio, good dehydration effect, large production capacity and energy saving.
4. The continuous operation from feeding to discharging mud cake is highly automated.
5. The power transmission mechanism adopts mechanical or frequency conversion regulation, which has a large speed regulation range and wide adaptability.
6. Screens with different specifications can be configured according to different materials with high filtration accuracy.
